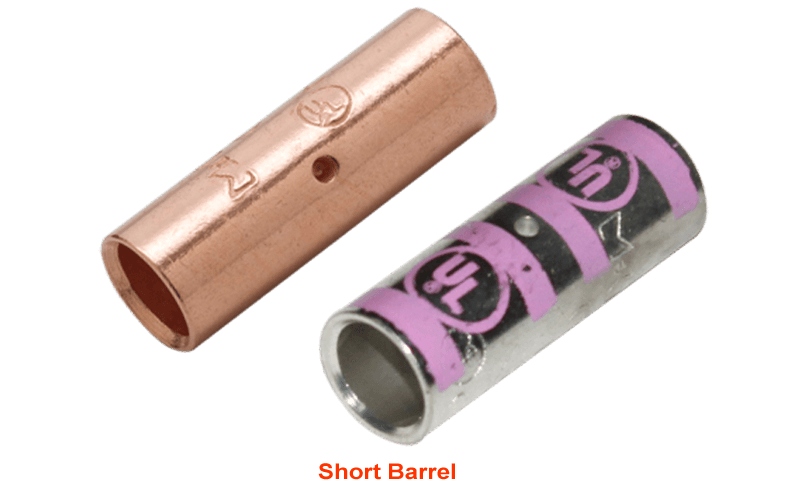

Copper Compression Connectors – Short Barrel
Material
- E-Copper
Finish
- 1 Electrotinned: ending with ‘P’, uncoated: ending with ‘U’
Features
- Available with champher or flare entry
Notes
- U.L. listed for 35kV max when properly installed
- Circular notch for wire stop
- Color coded for appropriate crimping (see crimping guideline)
- RoHS compliant
Catalogue no. | Cable size | ID | L | Strip Length | Color Code | Burndy Die Index | T&B Die Index | |
---|---|---|---|---|---|---|---|---|
AWG | mm² | |||||||
SCCA-C-8 P | 8 AWG | 10 | 0.18 | 1.04 | 0.45 | RED | 49 | 21 |
SCCA-C-6 P | 6 AWG | – | 0.23 | 1.04 | 0.45 | BLUE | 7 | 24 |
SCCA-C-4 P | 4 AWG | – | 0.28 | 1.04 | 0.45 | GRAY | 8 | 29 |
SCCA-C-2 P | 2 AWG | 35 | 0.33 | 1.34 | 0.58 | BROWN | 10 | 33 |
SCCA-C-1 P | 1 AWG | 50 | 0.35 | 1.56 | 0.68 | GREEN | 11 | 37 |
SCCA-C-1/0 P | 1/0 AWG | – | 0.39 | 1.56 | 0.68 | PINK | 12 | 42 |
SCCA-C-2/0 P | 2/0 AWG | 70 | 0.45 | 1.66 | 0.73 | BLACK | 13 | 45 |
SCCA-C-3/0 P | 3/0 AWG | – | 0.51 | 1.82 | 0.81 | ORANGE | 14 | 50 |
SCCA-C-4/0 P | 4/0 AWG | – | 0.55 | 1.94 | 0.86 | PURPLE | 15 | 54 |
SCCA-C-250 P | 250 Kcmil | – | 0.62 | 2.35 | 1.05 | YELLOW | 26 | 62 |
